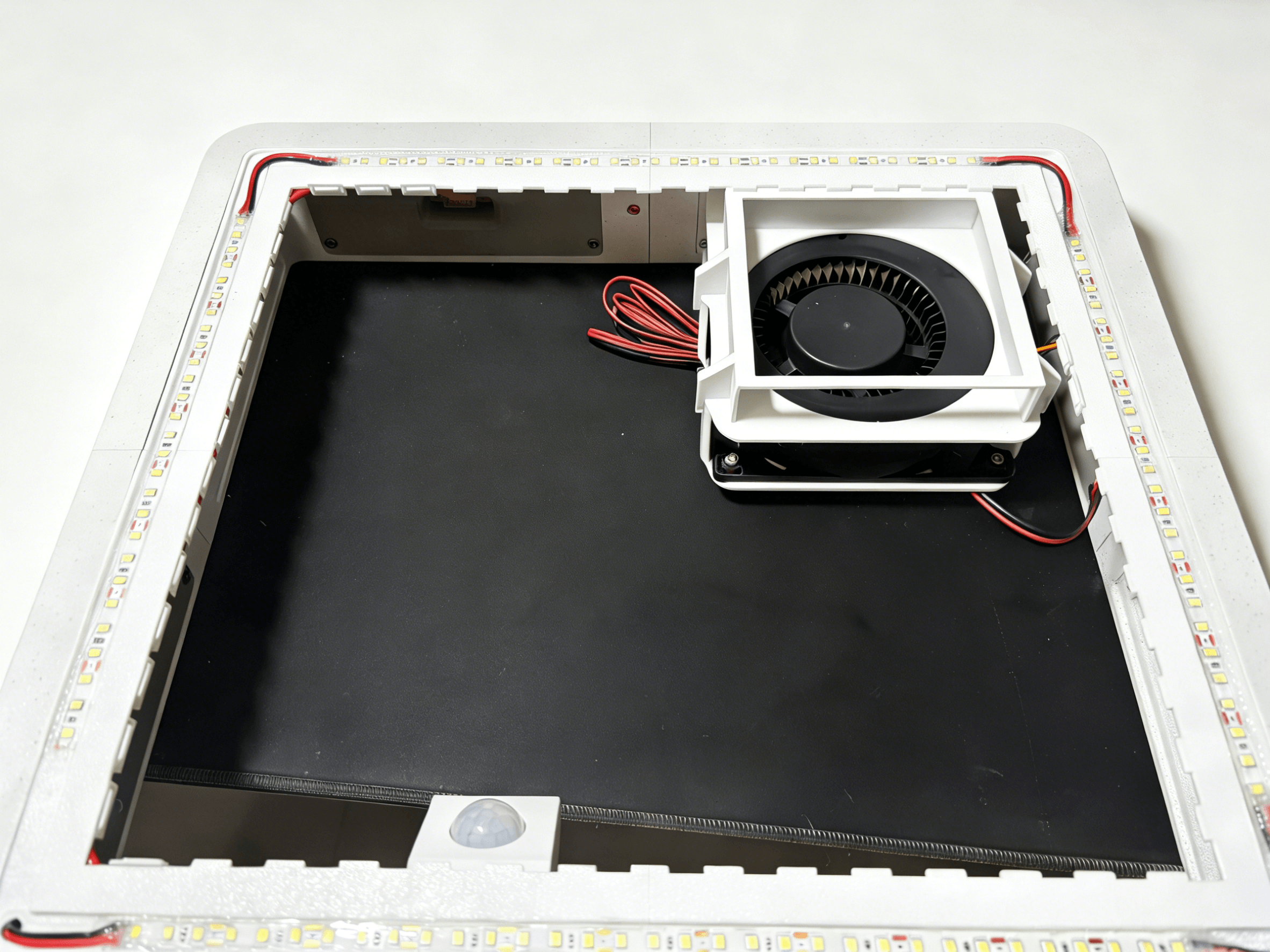

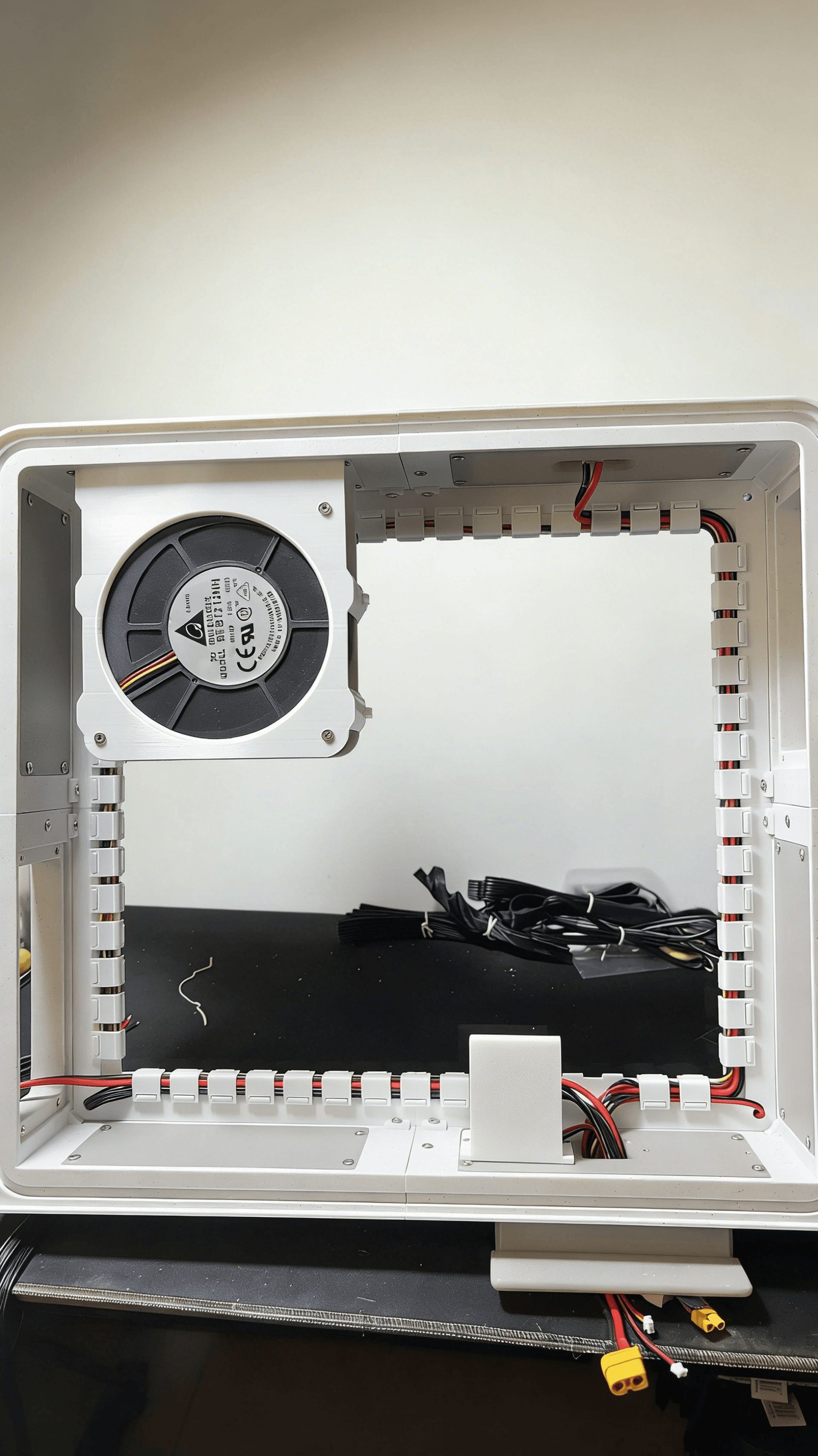

Main Frame Installation

Main Frame

Print using PETG

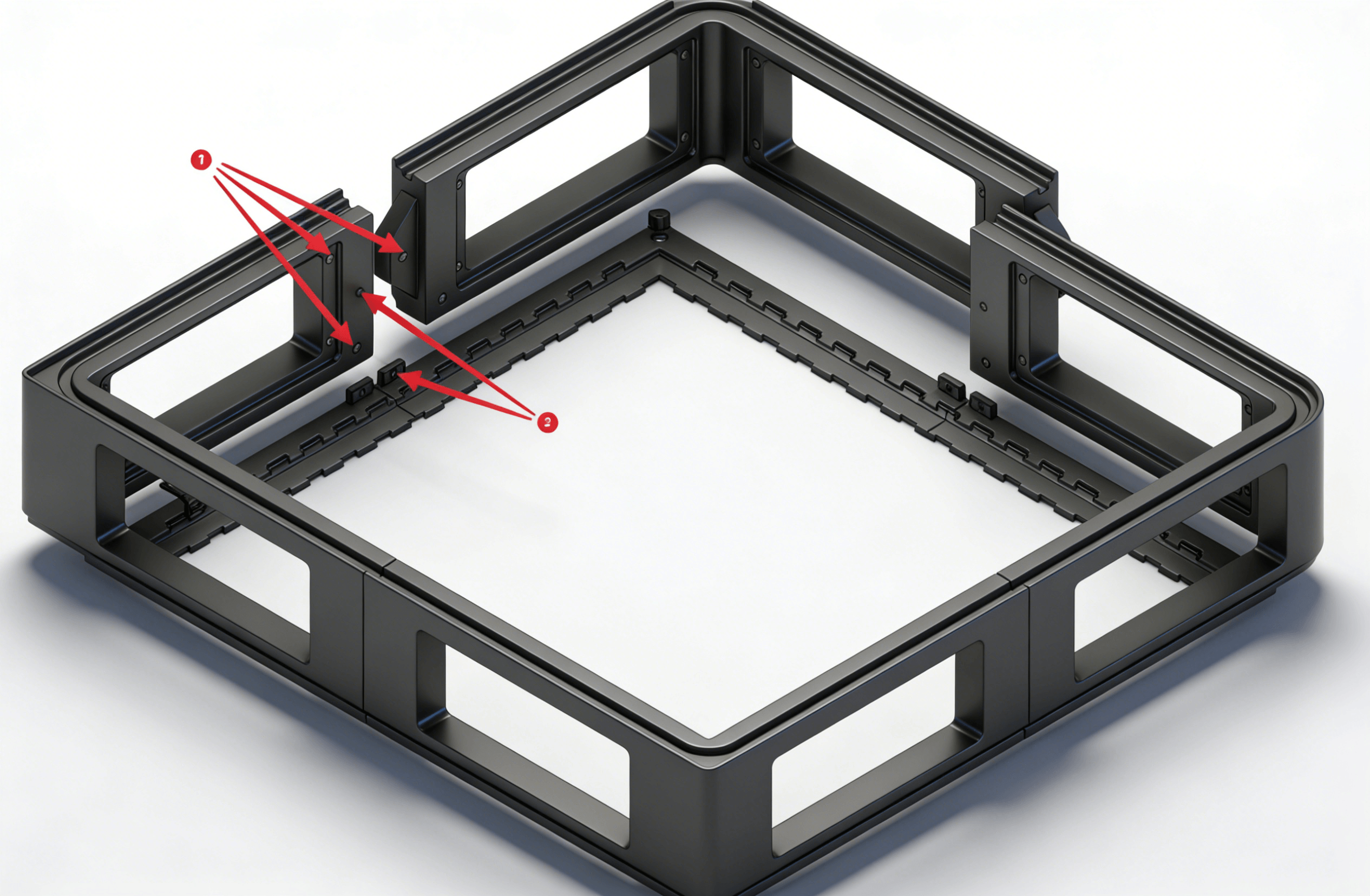

  1. Install in all larger holes: Heat-set insert M3 × 5 × 4.2
  2. Install in all smaller holes: Phillips flat head screw M3 × 6

Installation Tips

  • Press heat-set inserts slowly with a soldering iron to avoid deforming holes.
  • Install the main frame before other modules for easier assembly.
